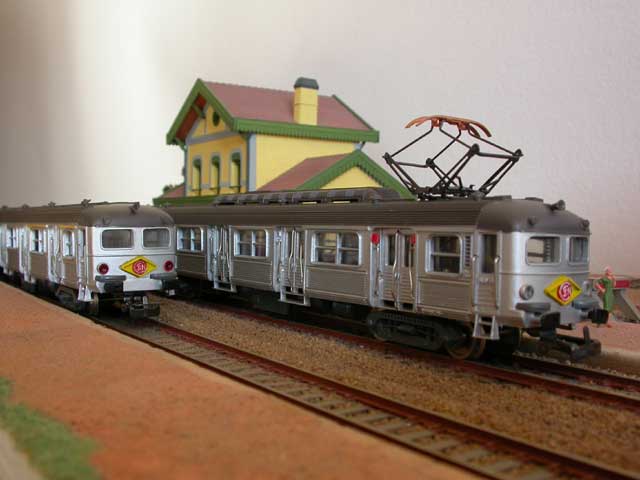

JOUEF trains picture gallery : EMU Z 5100 SNCF set 3 elements ref. 7610 E

© Picture : Philippe GALAUP.

variety of EMU class Z 5100 SNCF by JOUEF

- specifications

• reference : 7610 E,
• set of 1 driving unit + 2 trailers + 12 tracks,
• driving unit :
• registered number : Z 5154 SNCF,
• body and roof in U shape, made in grey plastic,
• markings into relief "SNCF" "Z5154" on body sides,
• dark brown painted roof,
• articulated pantograph,
• inserted buffers,
• frame and windows in U shape, made in one clear plastic part,
• grey painted frame,
• markings into relief "MADE IN FRANCE","MODELE DEPOSE" and "JOUEF", under frame,
• grey plastic tanks screwed to fram and toiture,
• 3 poles electric motor 12 volts,
• drive by gear wheels,
• 1 driving bogie,
• 2 axles with rubber band,
• front white lights,
• international couplings without loop screwed to bogie,
• metallic wheels,
• end trailer :
• registered number : ZS 15150 SNCF,
• body and roof in U shape, made in grey plastic,
• markings into relief "SNCF" "ZS15150" on body sides,
• dark brown painted roof,
• inserted buffers,
• frame and windows in U shape, made in one clear plastic part,
• grey painted frame,
• markings into relief "MADE IN FRANCE","MODELE DEPOSE" and "JOUEF", under frame,
• grey plastic tanks screwed to fram and toiture,
• rear red lights,
• international couplings without loop screwed to bogie,
• metallic wheels,
• intermediate trailer :
• body and roof in U shape, made in grey plastic,
• dark brown painted roof,
• frame and windows in U shape, made in one clear plastic part,
• grey painted frame,
• markings into relief "MADE IN FRANCE" and "JOUEF", under frame,
• international couplings without loop screwed to bogie,
• metallic wheels,
• length : 810 mm (driving unit + 2 trailers),
• weight : 390 g (driving unit + 2 trailers),
