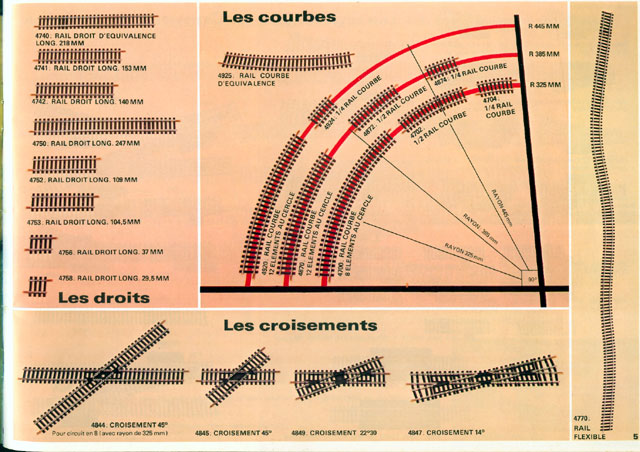

ref. 4740: straight track section, L = 218 mm
ref. 4741: straight track section, L = 153 mm
ref. 4742: straight track section, L = 140 mm
ref. 4750: straight track section, L = 247 mm
ref. 4752: half straight track section, L = 109 mm
ref. 4753: straight track section, L = 104.5 mm
ref. 4756: straight track section, L = 37 mm
ref. 4758: straight track section, L = 29.5 mm
ref. 4925: equivalent curved track section
ref. 4700: curved track section, R = 325 mm
ref. 4702: half curved track section, R = 325 mm
ref. 4704: quarter curved track section, R = 325 mm
ref. 4870: curved track section, R = 385 mm
ref. 4872: half curved track section, R = 385 mm
ref. 4874: quarter curved track section, R = 385 mm
ref. 4920: curved track section, R = 445 mm
ref. 4924: quarter curved track section, R = 445 mm
ref. 4844: diamond crossing 45 degrees (eight form layout with curved track sections R = 325 mm)
ref. 4845: diamond crossing 45 degrees
ref. 4849: diamond crossing 22.50 degrees
ref. 4847: diamond crossing 14 degrees
ref. 4770: flexible track section, L = 988 mm
